CLAMPING PLATES FOR OPEN ENDED TIMING BELTS

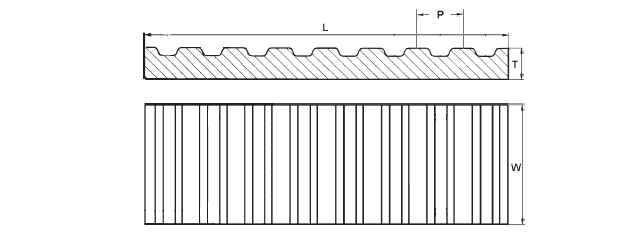

Aluminum Clamping Plates are typically used in linear drive applications to clamp belt ends. Clamping plates are economical to use and are designed to accurately mesh with belt teeth. Figures 1 and 2 show typically reciprocating drive. It is recommended to clamp a minimum of six teeth of each belt end to obtain full belt strength.
