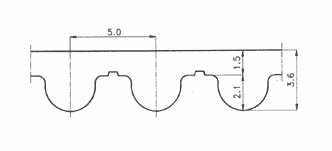

MTD5M
MTD5M
WIDTH
[mm]
MAX
TRACTION
LOAD
[N]

MAX
TRACTION
LOAD
JOINED
[N]

BREAKING
STRENGTH
[N]
BELT WEIGHT
[kg/m]
10 630 315 1960 0,041
15 1180 590 3675 0,061
25 2050 1025 6370 0,102
50 4255 2128 13230 0,203
MTD5M
MTD5M
Tolerances for belt width ±0,5
Tolerances for nominal thickness ±0,20
