RPP5

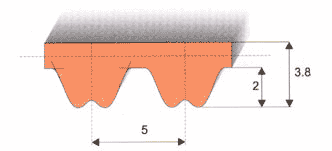

TOOTH DIMENSIONS
RPP5

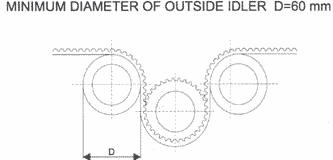

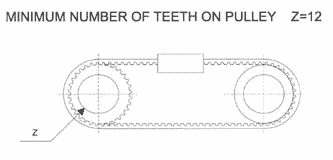

FLEXION RESISTANCE
RPP5
TRACTION RESISTANCE
WIDTH
(mm)		 MAX
TRACTION
LOAD
(N)
BREAKING
LOAD
(N)
 		 BELT WEIGHT
(gr./mt.)
10 875 2680 39
15 1330 4020 59
25 2375 7230 98
30 2660 8040 117
50 4750 15000 195




RPP5
  Tolerance on belt width ±0.5 mm
  Tolerance on thickness ±0.20 mm
