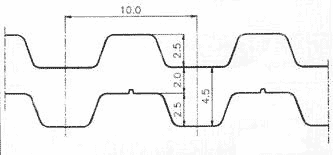

| b Belt width, mm |
10 |
12 |
16 |
20 |
25 |
32 |
50 |
75 |
| B Pulley width, mm |
15 |
17 |
21 |
25 |
30 |
37 |
56 |
80 |
| Special widths on request |
| Tolerances
for belt width |
±0,5 |
| Tolerances
for nominal thickness hs |
±0,3 |
Min. diameter of the Idler Pulley placed inside the belt =
60 mm
Min. diameter of the Idler Pulley placed outside the belt =
60 mm |
|
|
| CODE |
LENGTH(mm) |
nº TEETH (z) |
| 260DL |
260 |
26 |
| 530DL |
530 |
53 |
| 630DL |
630 |
63 |
| 660DL |
660 |
66 |
| 720DL |
720 |
72 |
| 840DL |
840 |
84 |
| 920DL |
920 |
92 |
| 980DL |
980 |
98 |
| 1210DL |
1210 |
121 |
| 1240DL |
1240 |
124 |
| 1250DL |
1250 |
125 |
| 1320DL |
1320 |
132 |
| 1350DL |
1350 |
135 |
| 1420DL |
1420 |
142 |
| 1610DL |
1610 |
161 |
| 1880DL |
1880 |
188 |
|
|
|
