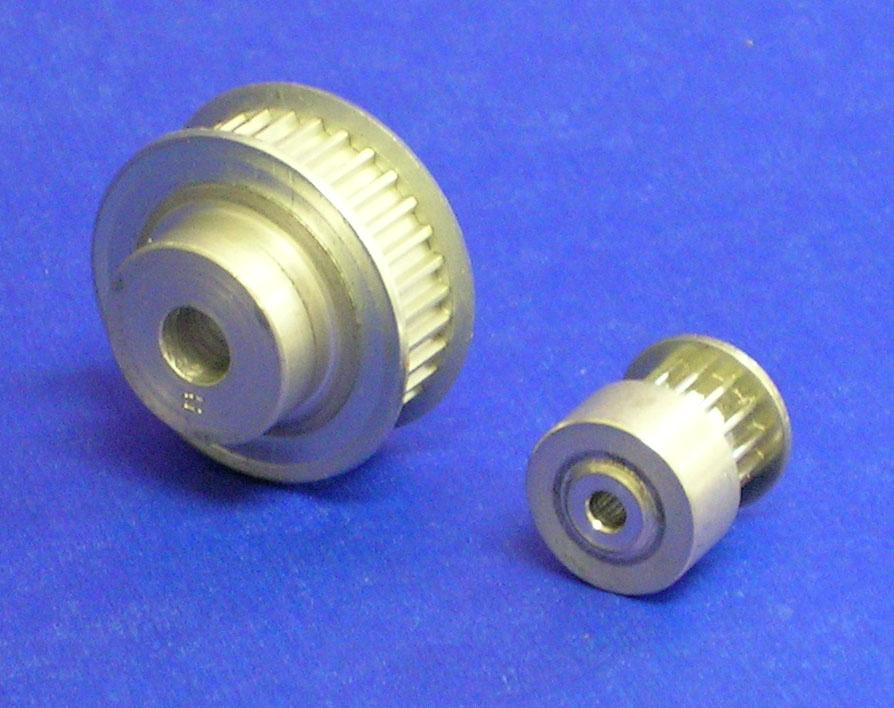

Metric T2.5 pitch timing pulleys

T2.5 (Pitch 2.5 mm) For belt width 6 mm

Material

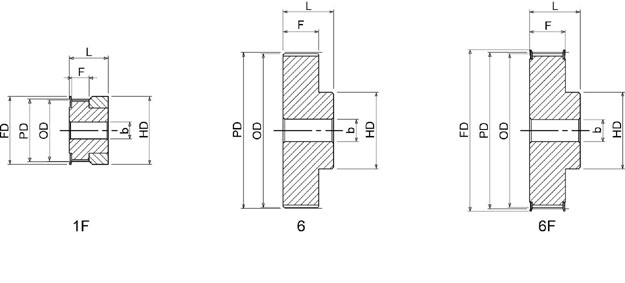

Pulley Type (see above)
Designation
N. Of Teeth

PD
(mm)
OD
(mm)
FD
mm

HD
(mm)
F
(mm)
L
(mm)
b
(mm)
Weight (kg)
Aluminum
1F
16 T 2.5/12-1F
12
9.55
9
13
12
9
16

0.004
Aluminum
1F
16 T 2.5/14-1F
14
11.14
10.6
15
14
9
16

0.006
Aluminum
1F
16 T 2.5/15-1F
15
11.94
11.4
15
15
9
16

0.006
Aluminum
1F
16 T 2.5/16-1F
16
12.73
12.2
16
16
9
16

0.006
Aluminum
6F
16 T 2.5/18-6F
18
14.32
13.8
17.5
10
10
16
4
0.005
Aluminum
6F
16 T 2.5/19-6F
19
15.12
14.6
18
10
10
16
4
0.006
Aluminum
6F
16 T 2.5/20-6F
20
15.92
15.4
19.5
11
10
16
4
0.006
Aluminum
6F
16 T 2.5/22-6F
22
17.51
17
23
11
10
16
4
0.009
Aluminum
6F
16 T 2.5/24-6F
24
19.1
18.55
23
12
10
16
4
0.02
Aluminum
6F
16 T 2.5/25-6F
25
19.89
19.35
23
13
10
16
4
0.02
Aluminum
6F
16 T 2.5/26-6F
26
20.69
20.15
25
14
10
16
4
0.02
Aluminum
6F
16 T 2.5/28-6F
28
22.28
21.75
25
14
10
16
4
0.02
Aluminum
6F
16 T 2.5/30-6F
30
23.87
23.35
28
16
10
16
6
0.02
Aluminum
6F
16 T 2.5/32-6F
32
25.46
24.95
32
16
10
16
6
0.02
Aluminum
6F
16 T 2.5/36-6F
36
28.65
28.1
36
20
10
16
6
0.03
Aluminum
6F
16 T 2.5/40-6F
40
31.83
31.3
38
22
10
16
6
0.03
Aluminum
6
16 T 2.5/44-6
44
35.01
34.5
42
24
10
16
6
0.04
Aluminum
6
16 T 2.5/48-6
48
38.2
37.7

26
10
16
6
0.05
Aluminum
6
16 T 2.5/60-6
60
47.75
47.25

34
10
16
8
0.08
