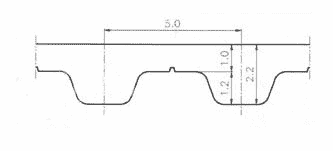

T5
WIDTH
[mm]
MAX
TRACTION
LOAD
[N]
MAX
TRACTION
LOAD
JOINED
[N]
BREAKING
STRENGTH
[N]
BELT WEIGHT [kg/m]
6 190 / 570 0,015
10 305 150 915 0,025
16 610 305 1830 0,040
25 985 490 2975 0,065
32 1290 645 3890 0,080
50 1970 985 5950 0,130
75 2680 1340 8100 0,187
100 3400 1700 10200 0,25

Tolerances for belt width ±0,5
Tolerances for nominal thickness 0,15
