XL

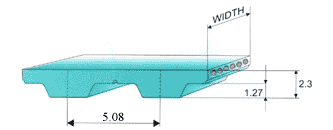

TOOTH DIMENSIONS
TRACTION RESISTANCE
 WIDTH BELT (mm)   12.7 19.1 25.4 38.1 50.8 76.2 101.6 152.4
 MAX TRACTION LOAD (N)   420 670 910 1390 1880 2850 3820 5750
 WIDTH TOLERANCE [mm] ±0,5
 THICKNESS TOLERANCE [mm] ±0,3

 WIDTH BELT (inch) 025 037 050 075 100 150 200 300 400 600
 BELT WEIGHT (gr./mt) 16 23 31 46 61 91 122 183 244 366

FLEXIBILITY

 • minimum no of teeth pulley accepted z 10
 • minimum diameter for inside idler Ø 30 mm

 • minimum no of teeth pulley on the
    back of double teeth belt
z 15
 • minimum diameter for outside idler Ø 30 mm
