| TRACTION RESISTANCE |
|

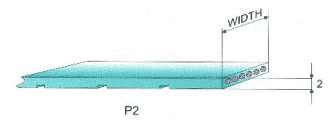

| WIDTH BELT (mm) |
|
|
|
|
|
25 |
50 |
75 |
150 |
| MAX TRACTION LOAD (N) |
|
|
|
|
|
2130 |
4440 |
6750 |
9050 |
| WIDTH TOLERANCE [mm] |
±0,5 |
| THICKNESS TOLERANCE [mm] |
±0,3 |
 |
| • minimum no of teeth pulley accepted |
- |
|
|
| • minimum diameter for inside idler |
Ø |
40 |
mm |
 |
• minimum no of teeth pulley on the
back of double teeth belt
|
- |
|
|
| • minimum diameter for outside idler |
Ø |
40 |
mm |
|
|
