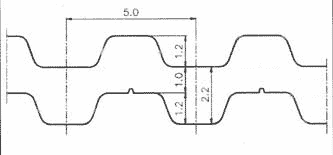

| b Belt width, mm |
6 |
8 |
10 |
12 |
16 |
20 |
25 |
| B Pulley width, mm |
12 |
13 |
15 |
17 |
21 |
25 |
30 |
| Special widths on request |
| Tolerances
for belt width |
±0,5 |
| Tolerances
for nominal thickness hs |
±0,15 |
Min. diameter of the Idler Pulley placed inside the belt = 30 mm
Min. diameter of the Idler Pulley placed outside the belt = 30 mm |
|
|
| CODE |
LENGTH(mm) |
nº TEETH (z) |
| 410DL |
410 |
82 |
| 460DL |
460 |
92 |
| 590DL |
590 |
118 |
| 620DL |
620 |
124 |
| 750DL |
750 |
150 |
| 815DL |
815 |
163 |
| 860DL |
860 |
172 |
| 940DL |
940 |
188 |
| 1100DL |
1100 |
220 |
|
|
|
