| TRACTION RESISTANCE |
|

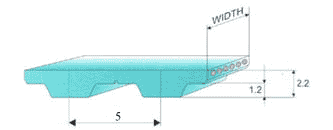

| WIDTH BELT (mm) |
6 |
10 |
16 |
25 |
32 |
50 |
75 |
100 |
150 |
| MAX TRACTION LOAD (N) |
165 |
330 |
595 |
960 |
1260 |
1990 |
3020 |
4080 |
6130 |
| BELT WEIGHT (gr./mt) |
15 |
25 |
40 |
65 |
80 |
110 |
160 |
210 |
320 |
| WIDTH TOLERANCE [mm] |
±0,5 |
| THICKNESS TOLERANCE [mm] |
±0,15 |
 |
| • minimum no of teeth pulley accepted |
z |
10 |
|
| • minimum diameter for inside idler |
Ø |
30 |
mm |
 |
• minimum no of teeth pulley on the
back of double teeth belt
|
z |
15 |
|
| • minimum diameter for outside idler |
Ø |
30 |
mm |
|
|
